| 起源の場所: | 江蘇、中国 |
| ブランド名: | Yixing ICS |
| 証明: | ce |
| 最小注文数量: | 1 - 1セット |
|---|---|
| 価格: | $10,000.00 |
| パッケージの詳細: | 標準的な容器または容器のloadEachセットよりより少しの木製の箱は標準的な容器の合板の場合そして輸送で包まれる |
| 供給の能力: | 1ヶ月あたりの1組のセット/セット |
| 氷の形: | 弾丸 | 氷の収蔵可能量: | どれも |
|---|---|---|---|
| 適当な企業: | ホテル、衣服は、建築材料買物をします、機械類の修理工場、製造工場、食糧及び飲料の工場、農場、レストラン、家の使用、小売り、食料品店、プリント ショップ、構造のworks 買物をします;、エネル | 保証サービスの後: | ビデオ テクニカル サポート、オンライン サポート、予備品、フィールド整備および修理サービス |
| 局所サービスの位置: | どれも | ショールームの位置: | どれも |
| 条件: | 新しい | 電圧: | 220V/380V |
| 力: | 4.5kw | 次元（l*w*h）: | 1320*950*1800 mm |
| 重量: | 4500kg | 保証: | 1年 |
| 売り上げ後のサービスは提供した: | のビデオ テクニカル サポート、オンライン サポート依託し、訓練し、フィールド整備、そして修理サービス自由な予備品、分野の取付け | 主セリング・ポイント: | 自動 |
| 機械類のテスト レポート: | 提供される | ビデオ出て行点検: | 提供される |
| 販売のタイプ: | 新製品2020年 | 中心の部品の保証: | 1年 |
| 中心の部品: | 圧力容器、モーター、軸受け、ギヤ、ポンプ、変速機、エンジン、PLC、他 | 製品名: | 宜興市ICSの管の製氷機 |
| タイプ: | 自動氷メーカー | 適用: | 飲み物冷却 |
| 材料: | ステンレス鋼 | 圧縮機: | Bitzer |
| 冷却剤: | R404a/R22a | 冷却の方法: | 水冷/空冷 |

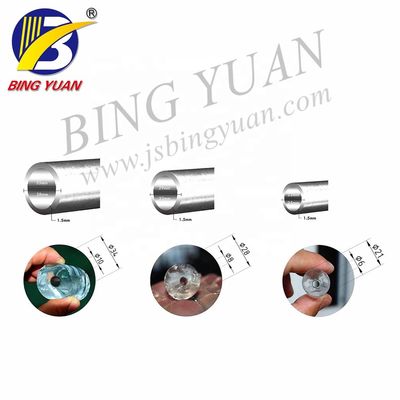

| 蒸化器の内部材料: | 炭素鋼/ステンレス鋼銅張りにしなさい/ | 氷の出口: | 22mm、28mm 35mm |
| 港: | 上海 |
|

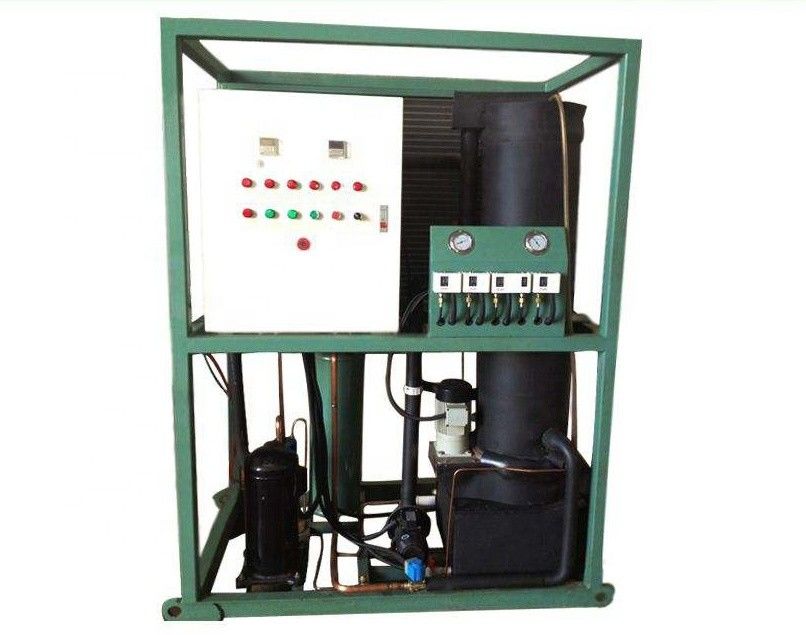

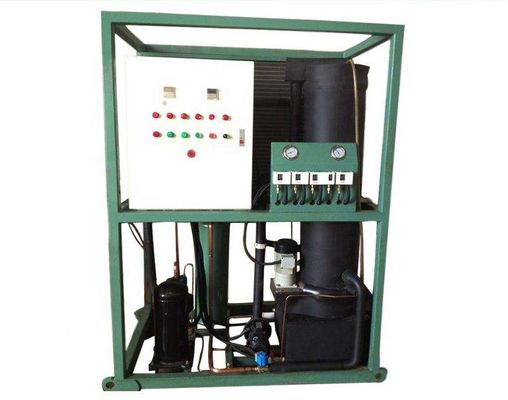

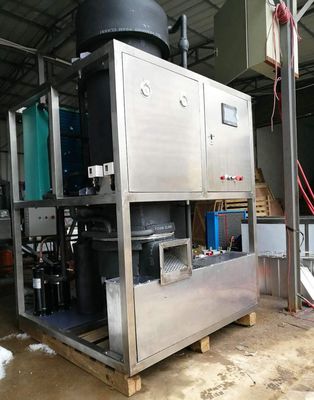

Product Name
|
Tube Ice Machine
|
|
Cooling Type
|
Water CoolingAir Cooling
|
|
Refrigerant
|
R22/R404A
|
|
Package
|
standard export packing
|
|
Input Power
|
380V/3P/50HZ
|
|
Ambient temp
|
30℃
|
|
Water inlet temp
|
25℃
|
|
condensing temp
|
42℃
|
|
Compressor running power
|
4.25kw
|
|
Installation power
|
6kw
|
|
Dimension
|
1320*950*1800mm
|
|
Net weight
|
650kg
|
|
Pure Ice
|
Using Pre-PurifyTM water purification technology to filter the incoming water, the ice cubes are crystal clear.
|
|
|
All the equipment adopts CAD-3D simulation assembly, which makes the arrangement of equipment parts and accessories and the direction of pipes more reasonable, compact structure and not crowded, and more humanized operation and maintenance.
|
|
Safety and Hygiene
|
Evaporator materials are made of stainless steel 304 and other materials, reaching the international health standards.
|
|
Efficient Performance
|
The evaporator adopts special processing technology, which makes the evaporator have better thermal conductivity.
|
|
|
Each compressor condensing unit is equipped with heat exchange of return pipe and liquid supply pipe, control of evaporation temperature and condensation temperature, superheat of return gas and oil return, so as to ensure stable operation of compressor
unit under safe working conditions. |
|
High Quality Accessories
|
More than 80% of the refrigeration equipment accessories produced by Ice Source use well known brands at home and abroad. For example, Bitzer is used for the compressor. Hansen, Danfoss, Emerson and other world famous brands are used as refrigeration accessories.
|
|
Customized
|
The refrigeration equipment produced by Ice Source can operate normally under the working conditions of -20~+50℃ and water inlet temperature of +0.5~+45℃. The company can not only provide all kinds of standard refrigeration equipment for you but also customized the refrigeration system under special working conditions according to the actual needs.
|
|
|
Perfect design, reduce the equipment internal unnecessary transmission parts, so that the equipment more simple and reliable. The unit is generally equipped with low water level, water flow, full ice, high pressure compressor, low pressure of compressor, oil pressure of compressor, et., so that the equipment can operate stably, reliably, and safely, and can operate continuously for more than 3000 hours without fault.
|
|
Standardization
|
Most of the products have been standardized, so that the production quality and processing technology are more mature and the quality is more guaranteed.
|
|
Fully Automatic
|
PLC computer module automatically controls ice making process at a glance.
|
