Industrial Evaporative Condensers / Closed Cooling Tower for Refrigeration Cold Room Wholesale Price

商品の詳細:

起源の場所:	江蘇、中国
ブランド名:	Yixing ICS
証明:	ce

お支払配送条件:

最小注文数量:	1 - 1セット
価格:	$6,000.00
パッケージの詳細:	各セットは標準的な容器の合板の場合そして輸送で包まれる
供給の能力:	1ヶ月あたりの1組のセット/セット

連絡先

すべての製品

薄片の氷メーカー機械 (75)

ブロックの氷メーカー機械 (63)

氷の管メーカー機械 (13)

スラリーの製氷機 (18)

人工的な降雪機械 (15)

蒸気化のコンデンサーのスリラー (11)

より涼しい冷却ユニット (12)

アルミニウム冷凍の列 (5)

太陽エネルギーは冷蔵室をコンテナに詰めた (11)

低温貯蔵の冷却ユニット (2)

詳細製品概要

氷の形:	その他	氷の収蔵可能量:	カスタマイズされる
適当な企業:	ホテル、衣服は、建築材料買物をします、機械類の修理工場、製造工場、食糧及び飲料の工場、農場、レストラン、家の使用、小売り、食料品店、プリントショップ、構造のworks 買物をします;、エネル	保証サービスの後:	ビデオテクニカルサポート、オンラインサポート、予備品、フィールド整備および修理サービス
局所サービスの位置:	どれも	ショールームの位置:	どれも
条件:	新しい	電圧:	220~480Vはカスタマイズした
力:	カスタマイズされる	次元（lwh）:	カスタマイズされる
重量:	3000-6000kg	保証:	1年
売り上げ後のサービスは提供した:	のビデオテクニカルサポート、オンラインサポート依託し、訓練し、フィールド整備、そして修理サービス自由な予備品、分野の取付け	主セリング・ポイント:	自動
機械類のテストレポート:	提供される	ビデオ出て行点検:	提供される
販売のタイプ:	新製品2020年	中心の部品の保証:	1年
中心の部品:	圧力容器、モーター、軸受け、ギヤ、ポンプ、変速機、エンジン、PLC	製品名:	産業蒸気化のコンデンサー
材料:	ステンレス鋼304	冷却剤:	R404a/R22a
圧縮機:	Bitzer	冷却容量:	カスタマイズされる
ひれ材料:	アルミ合金	適用:	冷凍の部品
モード:	反対の流れ	梱包:	顧客の特定の条件
港:	上海

Product Description

Yixing ICS Evaporative Condenser

Evaporative condenser is a efficiency heat exchange equipment developed by absorbing and upgrading the advanced heat exchange technology abroad. The evaporative condenser is the main heat exchange equipment in the refrigeration system. Its principle is that the heated and high pressure refrigerant gas discharged from the compressor in the refrigeration system passes through the condensing tube in the evaporative condenser, so that the high temperature gaseous refrigerant is exchanged with the spray water and air outside the exhaust pipe. That is, the gaseous refrigerant is gradually condensed into liquid refrigerant from top to bottom through the upper inlet. The strong wind force of the auxiliary draught fan makes the spray water evenly cover the surface of the coil, and the water greatly improves the heat exchange effect by the wind.

The temperature rising of the spray water from the part into the gaseous state, the use of water vaporized latent heat to take away a large amount of heat by the wind, the water droplets in the hot gas are intercepted by efficiency dehydrator, and the rest of the water absorbed by the heat, scattered to the heat exchange layer of PVC dripping water, cooling through the air, lowering the temperature, entering the water tank, and then circulating water pump. Continue to circulate. The moisture evaporated into the air is automatically replenished by the water level regulator.

Detailed Images

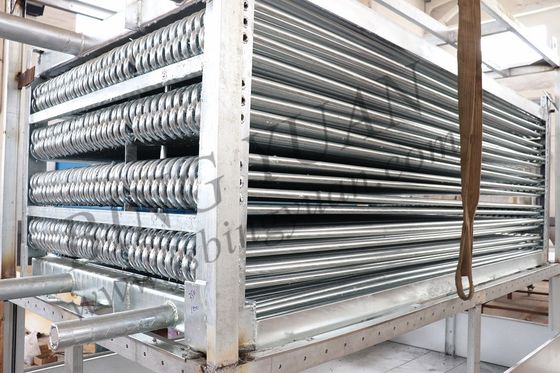

The condensing coils are made of long specially designed steel pipes, which are tested by 2.5MPa air pressure in water, and hot dip zinc at high temperatures near 430 degrees.

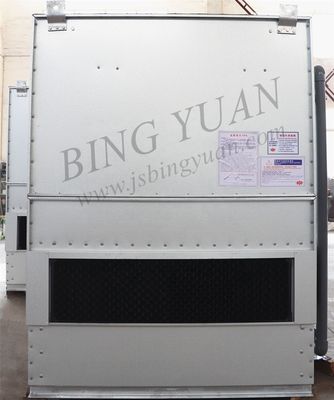

The box adopts imported or homemade quality galvanized sheet. Electrostatic spraying technology can be used, and stainless steel plate can be used in the sink.

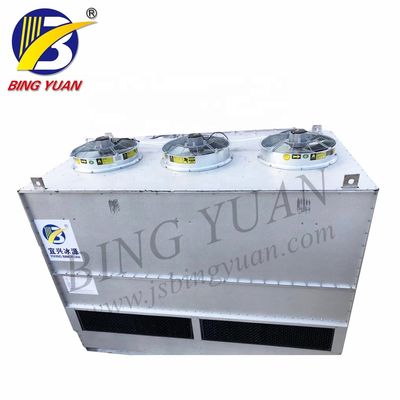

The fan selects a special efficiency and low noise axial flow fan. The special fan has a high range and prevents hot air from returning.

The water pump uses the small power, the big flow, the low lift is the outdoor type design, and may assemble the scale removal
instrument according to the customer request.

The water cloth, efficiency water collector and the cooling filler used the large flow and anti blockage nozzles to accurately calculate the continuous and uniform coverage, eliminate the water film "dry point" of the pipe wall, the quality PVC material, the aging resistance and the wind resistance small ditch like water absorbent. The water flow rate is controlled below 0.001%, the
cooling filler is the honeycomb type cross flow structure. Suitable for circulating water cooling.

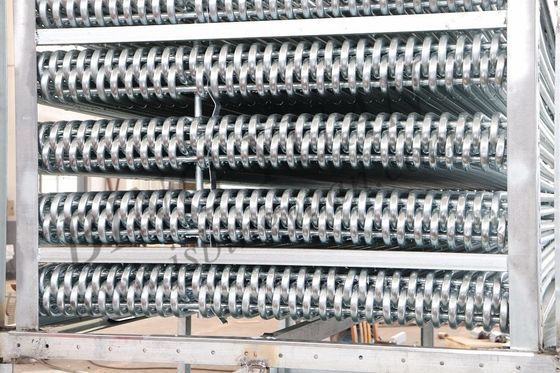

The condensing coil is made of quality 25 mm seamless steel pipe, and the design pressure is 1.97 Mpa.

The tightness test of 2.5 Mpa was carried out three times in water to ensure that the coil was not leaked.
After the assembly was completed, it was treated by thick hot dip galvanizing.

The coil is inclined along the direction of refrigerant to facilitate liquid discharge, and the coil pressure decreases.

Product Presentation

Model	Nominal heat Discharge		Axial Fan		Circulating Water Pump			Operating Weight
	kw	set	air volume (m³/h)	Power (kw)	Water flow (m³/h)	kw	kg
BYZNX-375	375	1	65000	4	55	1.5	4100
BYZNX-430	430	1	65000	4	55	1.5	4300
BYZNX-475	475	1	65000	4	55	1.5	4650
BYZNX-495	495	1	71000	5.5	55	1.5	4660
BYZNX-550	550	1	63500	4	80	2.2	5500
BYZNX-595	595	1	78000	5.5	80	2.2	5510
BYZNX-670	670	1	78000	5.5	80	2.2	5800
BYZNX-700	700	1	78000	5.5	80	2.2	5800
BYZNX-735	735	1	87000	7.5	80	2.2	6820
BYZNX-780	780	1	80000	5.5	80	2.2	7200
BYZNX-870	870	1	100000	7.5	80	2.2	7220
BYZNX-900	900	1	2*65000	2*4	110	3	7500
BYZNX-960	960	1	2*65000	2*4	110	3	7900
BYZNX-1000	1000	1	2*71000	2*5.5	110	3	8000
BYZNX-1050	1050	1	2*79000	2*7.5	110	3	8100
BYZNX-1165	1165	1	2*63500	2*4	140	4	8800
BYZNX-1285	1285	1	2*78000	2*5.5	140	4	8820
BYZNX-1335	1335	1	2*87000	2*7.5	140	4	8840
BYZNX-1420	1420	1	2*78000	2*4	140	4	11000
BYZNX-1490	1490	1	2*87000	2*7.5	140	4	11020
BYZNX-1575	1575	1	3*65000	3*4	140	4	11500
BYZNX-1620	1620	1	3*71000	3*5.5	140	4	11620
BYZNX-1690	1690	1	3*79000	3*7.5	140	4	11640
BYZNX-1765	1765	1	3*78000	3*5.5	180	5.5	14900
